What is a Cylindrical Roller Bearing? Structure, Measurement, and Practical Applications

In heavy-duty industrial transmission systems, cylindrical roller bearings are indispensable components thanks to their superior radial load capacity. At Kiên Thành Tín (KTT), we provide a comprehensive ecosystem of specialized cylindrical roller bearings, helping optimize operational efficiency and extend machinery lifespan for all manufacturing projects.

1. What is a cylindrical roller bearing?

A cylindrical roller bearing is a type of industrial bearing that uses cylindrical rollers instead of balls. This design creates line contact, allowing the bearing to withstand extremely high radial loads, reduce friction, and operate stably at high speeds.

Cylindrical rollers inside the bearing

2. Structure of cylindrical roller bearings

A standard cylindrical roller bearing includes 4 core components:

• Inner ring & Outer ring: Precisely machined from high-strength steel to ensure accurate rotation.
• Cylindrical rollers: The main component that evenly distributes load and minimizes stress concentration.
• Ribs: Help guide the rollers and may support limited axial loads depending on design types (NU, NJ, NUP).
• Cage: Available in steel, brass, or polyamide materials to maintain roller spacing and reduce heat during continuous operation.

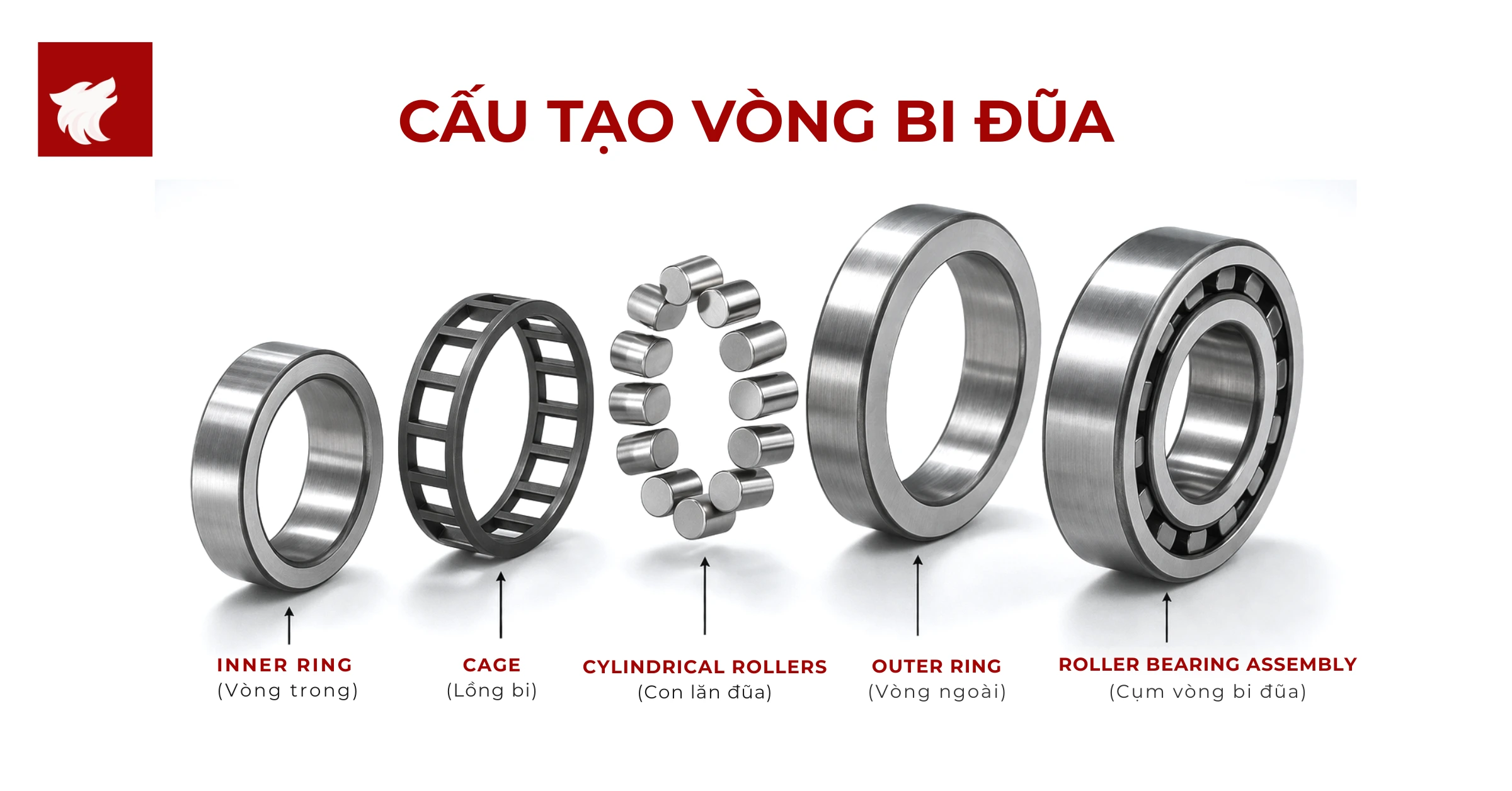

Cylindrical roller bearing structure

3. How to measure cylindrical roller bearings accurately

To ensure correct replacement, customers should measure the three key parameters (d x D x B) using a caliper.

1. Inner diameter: Measure at the shaft contact area. Clean old grease before measuring to avoid errors.
2. Outer diameter: Measure the largest distance of the outer ring (housing contact area).
3. Width: Total thickness of the bearing.

Note: For worn or old bearings, use a dial indicator to check radial runout before selecting a replacement.

>> See more: Bearing reference table

4. Practical applications in manufacturing

Cylindrical roller bearings used in gearboxes

• Machinery manufacturing & precision engineering: Industrial gearboxes, CNC spindles, metal processing machines, high-power electric motors
• Heavy industries (cement, mining, metallurgy): Crushers, conveyors, rotary kilns, rolling mills
• Energy (wind, biomass, hydropower): Turbines, generators, pellet machines
• Agriculture, forestry, fisheries: Combine harvesters, tractors, milling and processing machines
• Construction & heavy equipment: Excavators, bulldozers, cranes
• Oil & chemical industries: Industrial pumps, compressors, high-pressure and high-temperature equipment
• Automation & modern manufacturing: Automated lines, industrial robots, precision drive systems

5. Kiên Thành Tín – Trusted cylindrical roller bearing supplier for factories

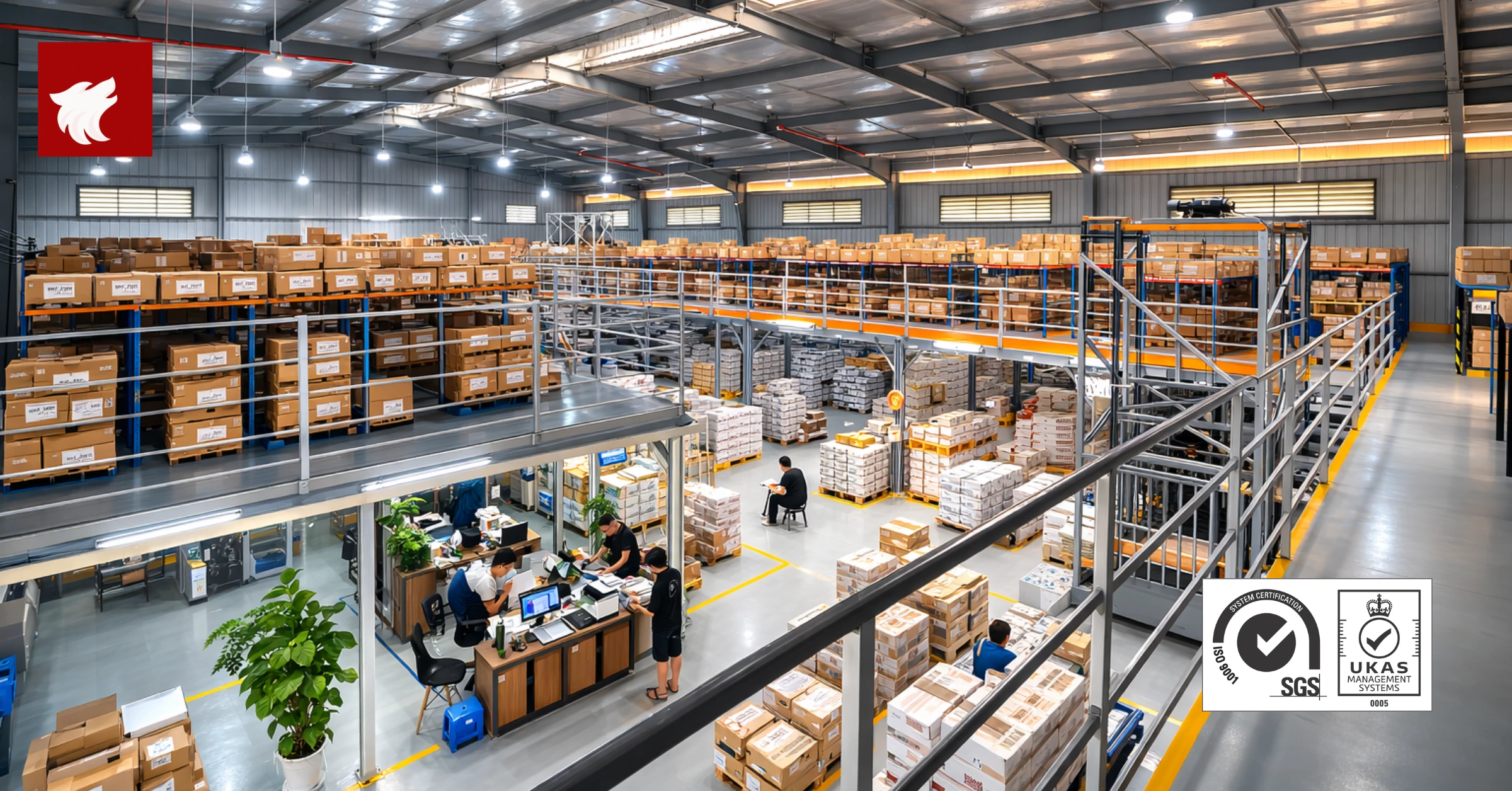

KTT warehouse compliant with ISO 9001:2015

With 15 years of experience serving over 500 partners, KTT is proud to be a leading supplier in specialized industrial bearings:

• Quality commitment: Products meet ISO 9001:2015 standards with full CO (Certificate of Origin) and CQ (Certificate of Quality).
• OEM solutions: KTT manufactures and supplies customized cylindrical roller bearings based on specific project requirements.
• Fast response: Project team provides quotations and technical consultation within 30 minutes.
• KTT Store system: Supplies genuine products with transparent pricing and origin.
